Units are Made to Order with a 3 week turn around

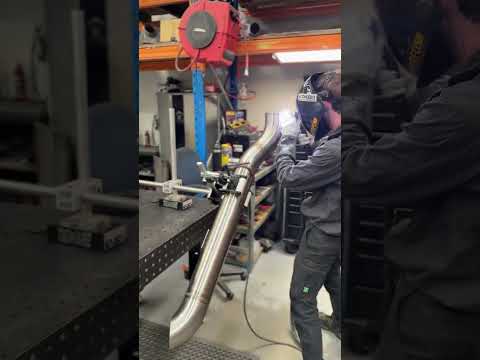

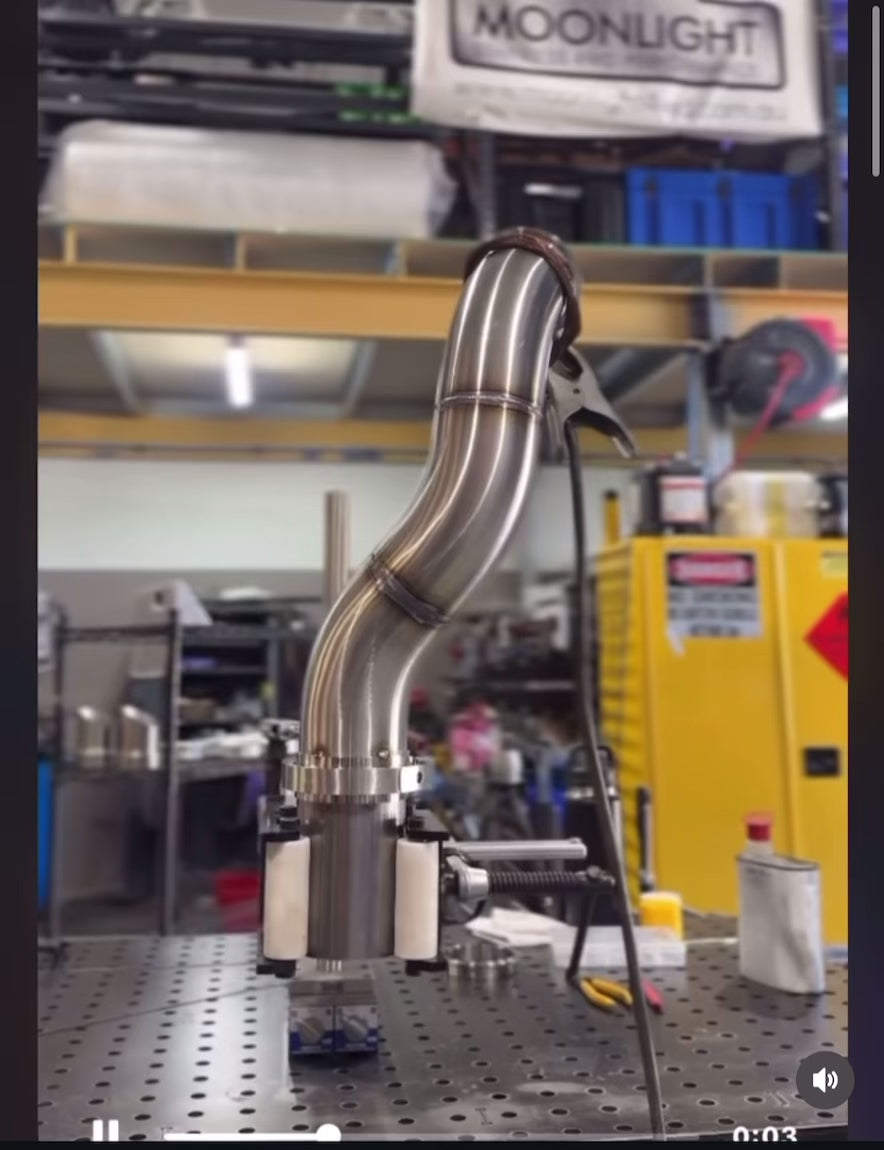

Designed for work holding Intake and Exhaust Systems
Concept is to allow access to the work with an Elevated position from the work bench
GRIPPA can hold round tubing ranging from
2" to 4"

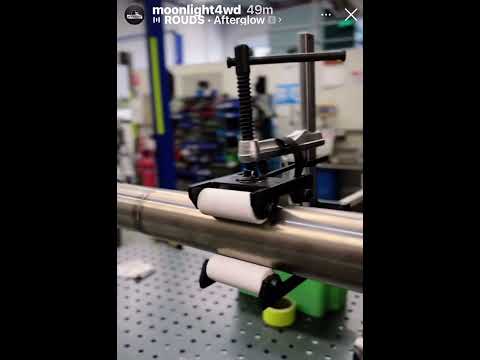

The GRIPPA Head is equiped with 4 Teflon Rollers so the work can be rotated manually for welding and or set-up work
Magnet base rated to 400kg (882Lb) Pulling Force
Vertical and Horizontal supports are constructed of Heavy wall 304 SS
GRIPPA Head is made from 304 SS / Carbon Steel & Teflon
Heavy Duty 6061 Transition Block
GRIPPA can also double as a standard TIG Steady
With Magnet = Includes Magnets
With-Out Magnets = Base Plate for Table Clamps or Bolt in Position
Used for material support.
For best performance use the GRIPPA in line with the Magnet Base.
The supporting tower is 25" High SS
The Transition Arm is 25" Long SS
The Magnet Base is Rated to 400kg Pull Force
The Transition Block is made from a Solid Block of Aluminium
Locking System = M12 Cap Screws
Material = Stainless Steel
High Grade Surface finish
TIGWARE ships using DHL Express for all deliveries outside Australia. Usually 3 to 4 days door to door. Domestic deliveries are via Australia Post Express Post usually next day to city areas.
