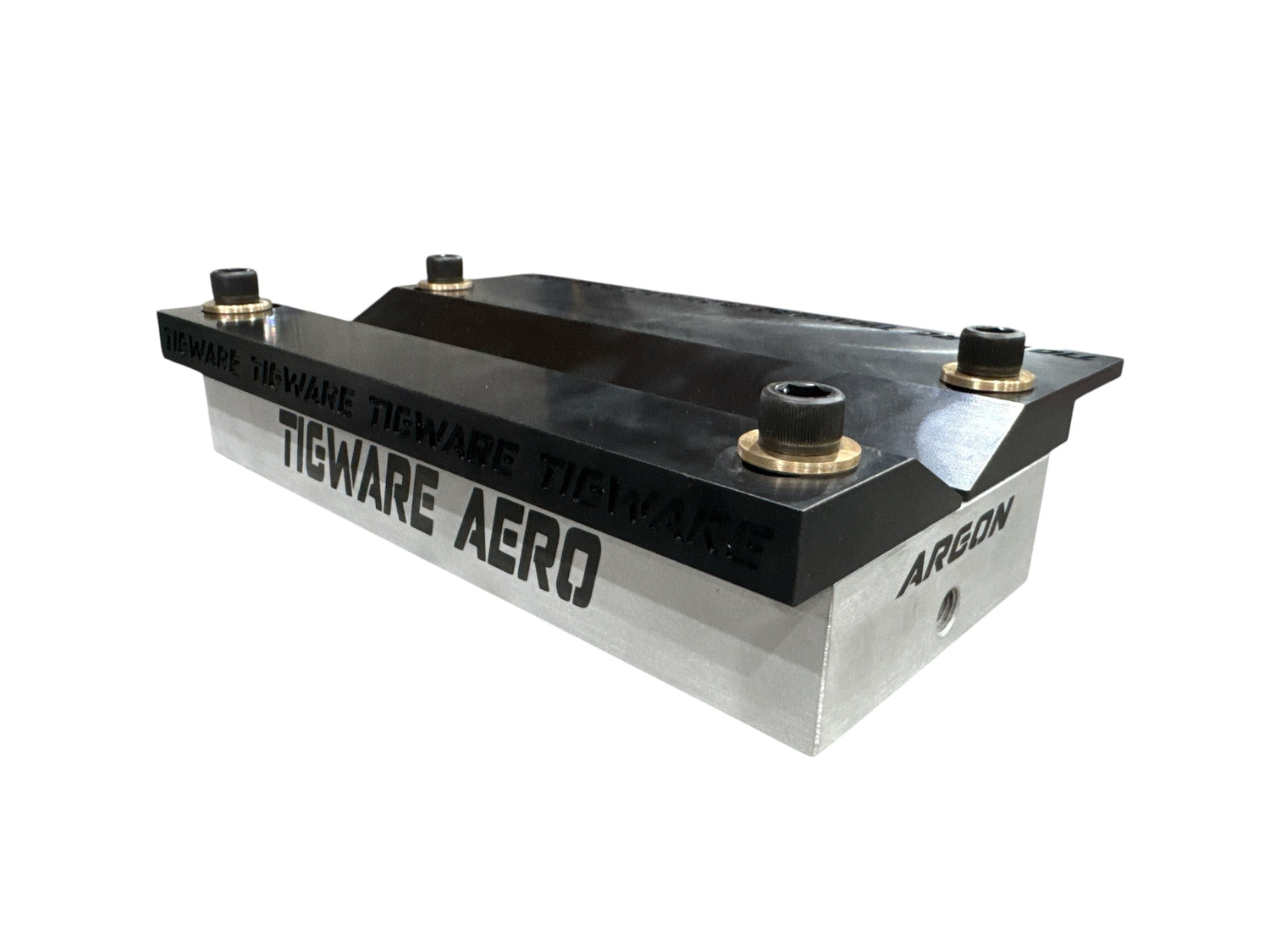

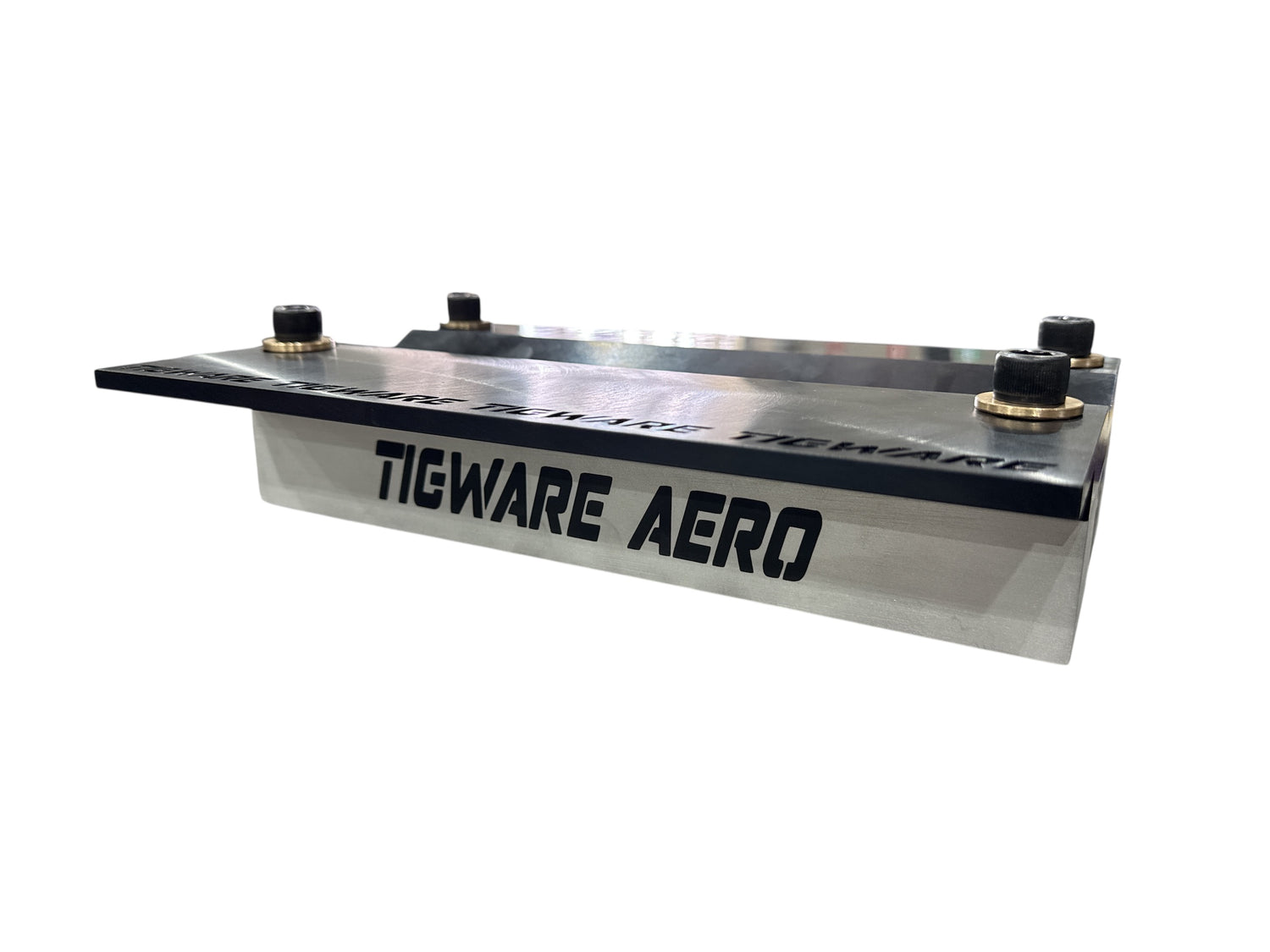

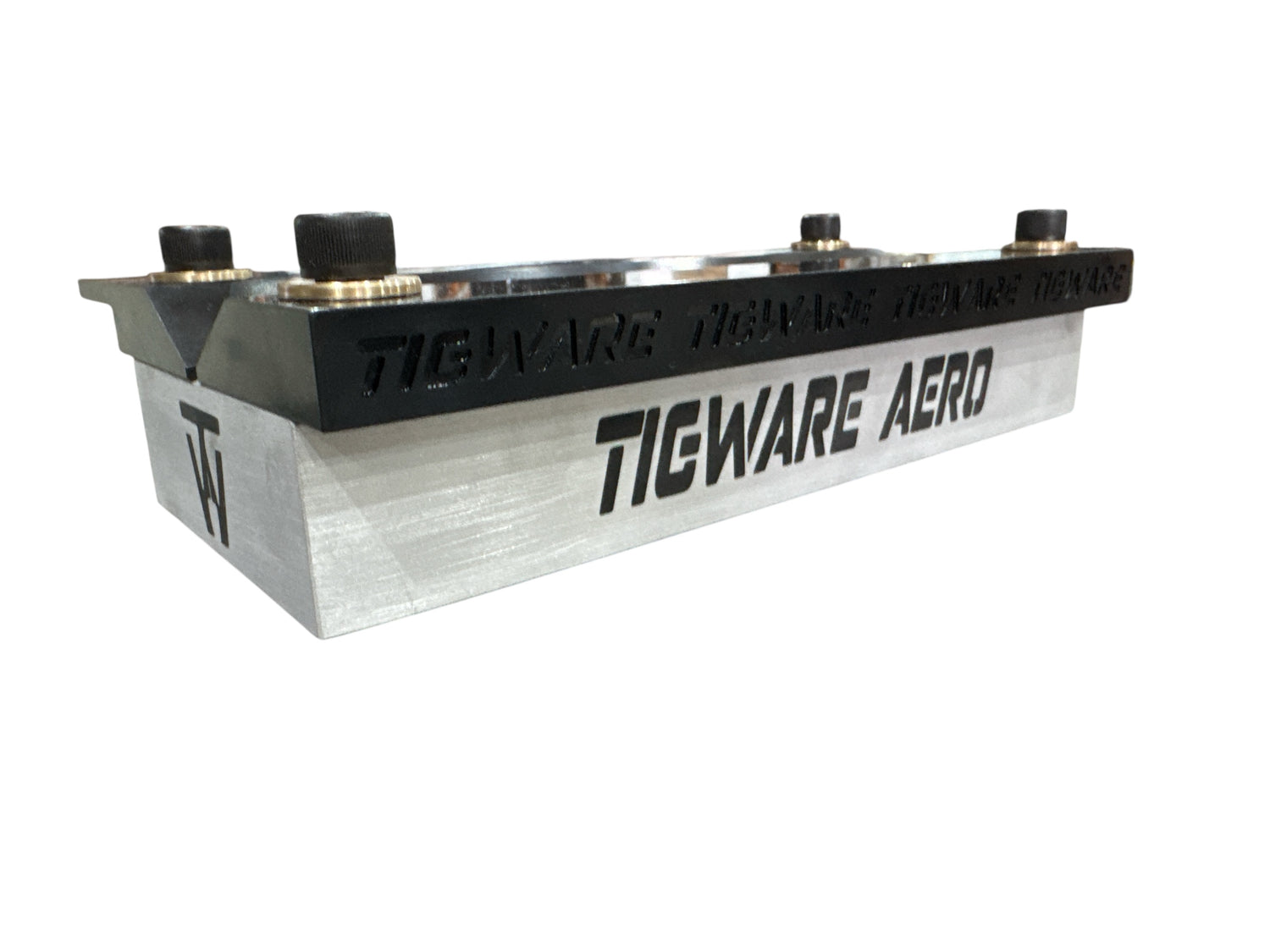

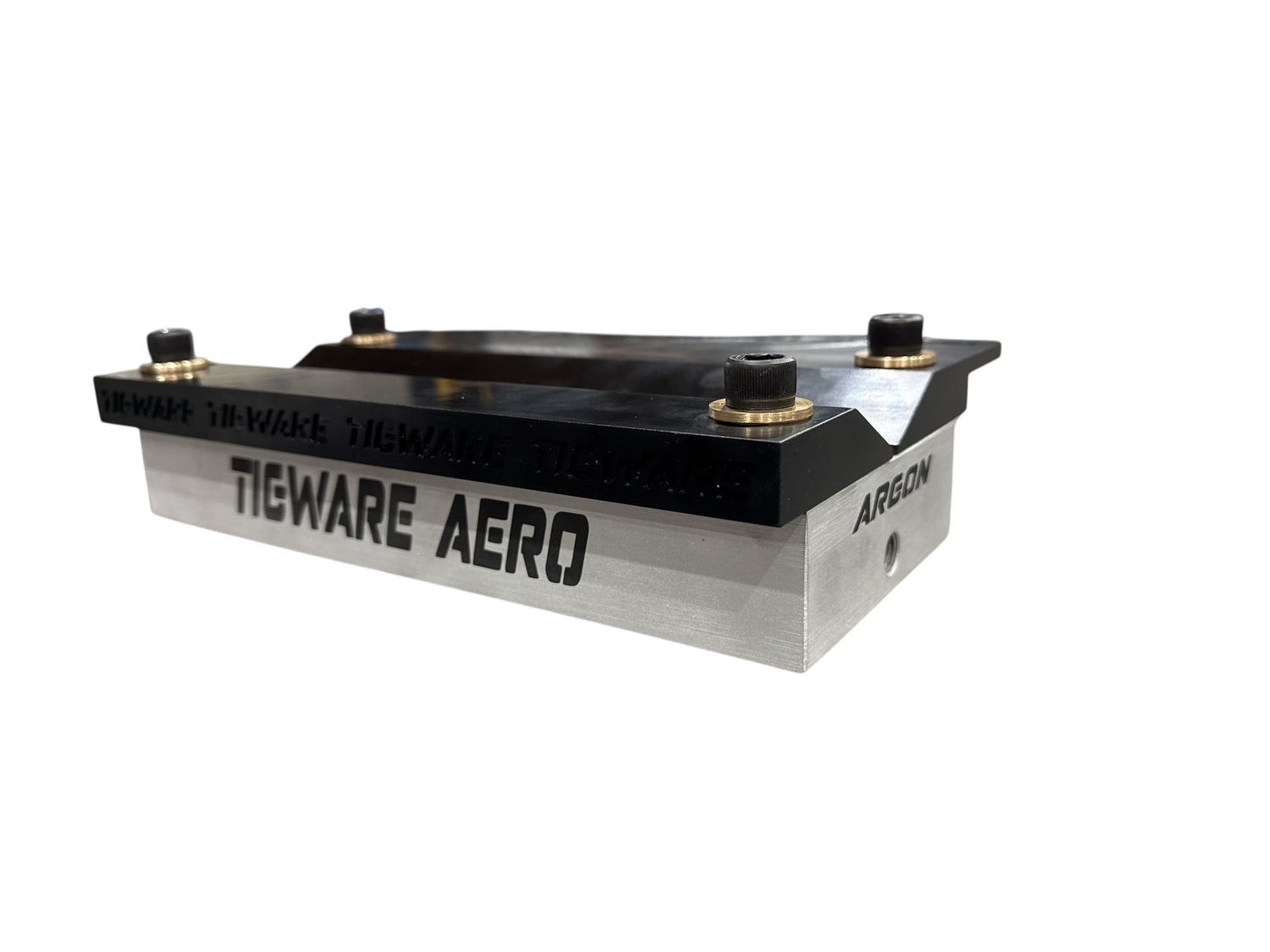

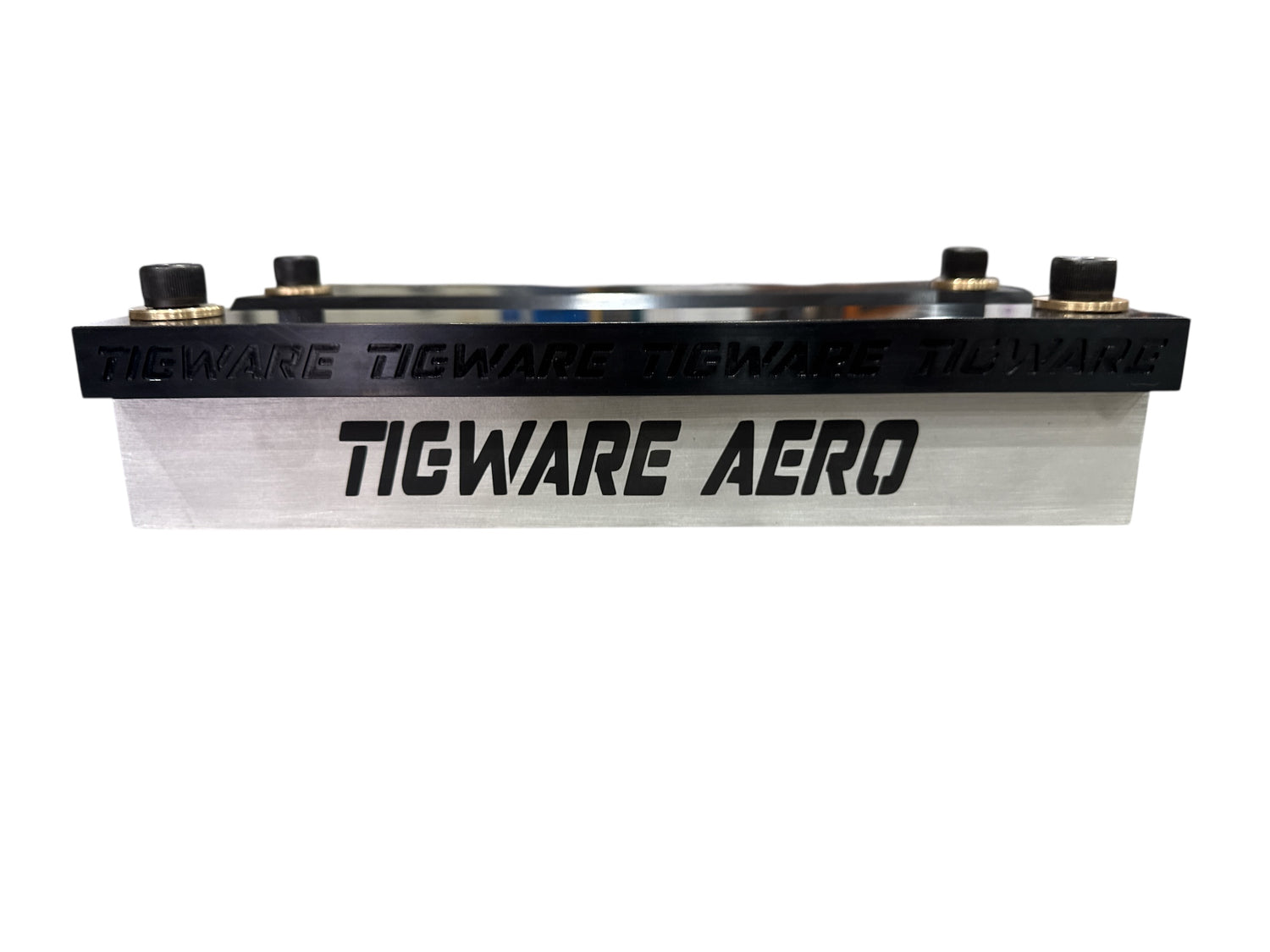

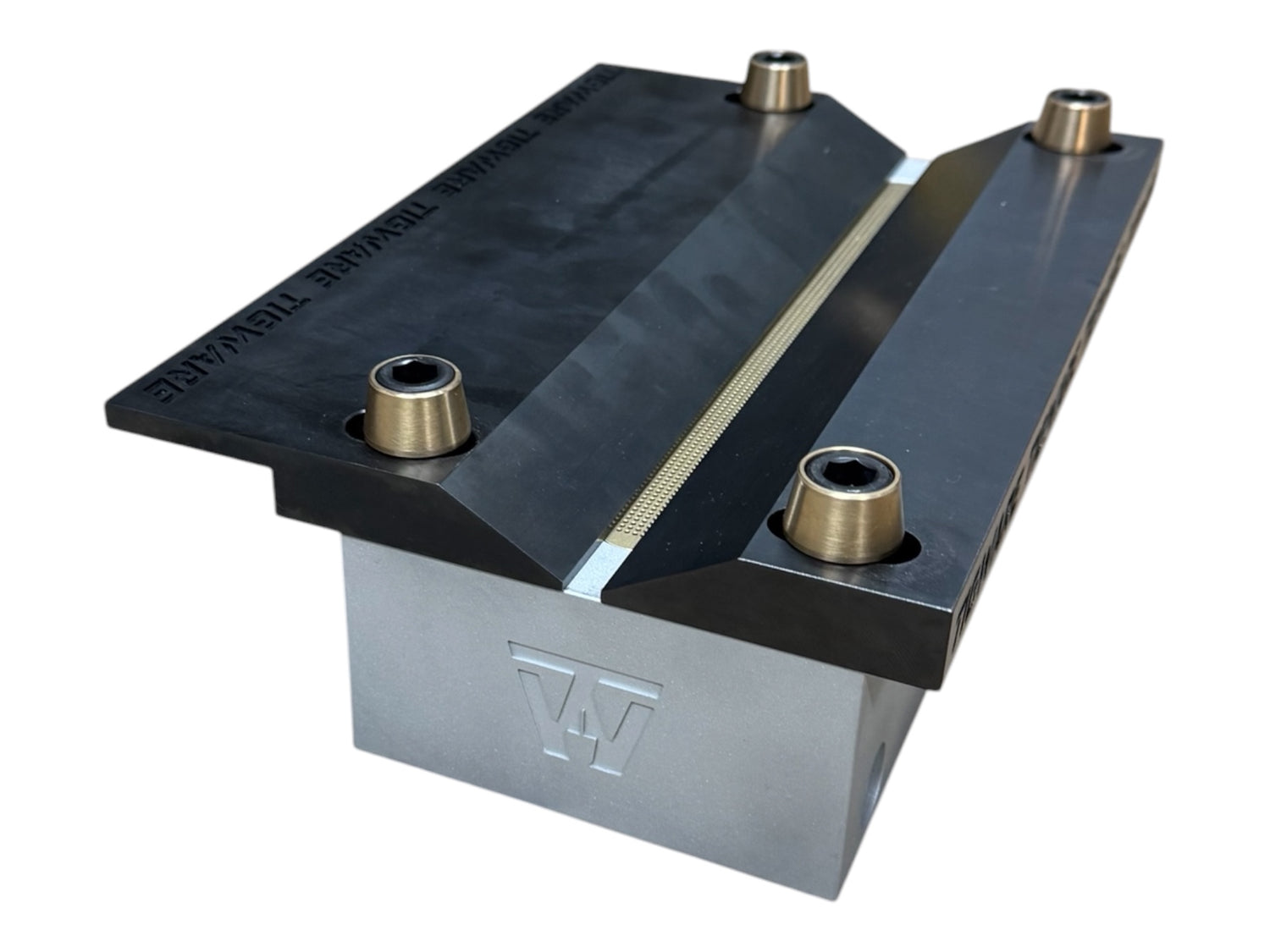

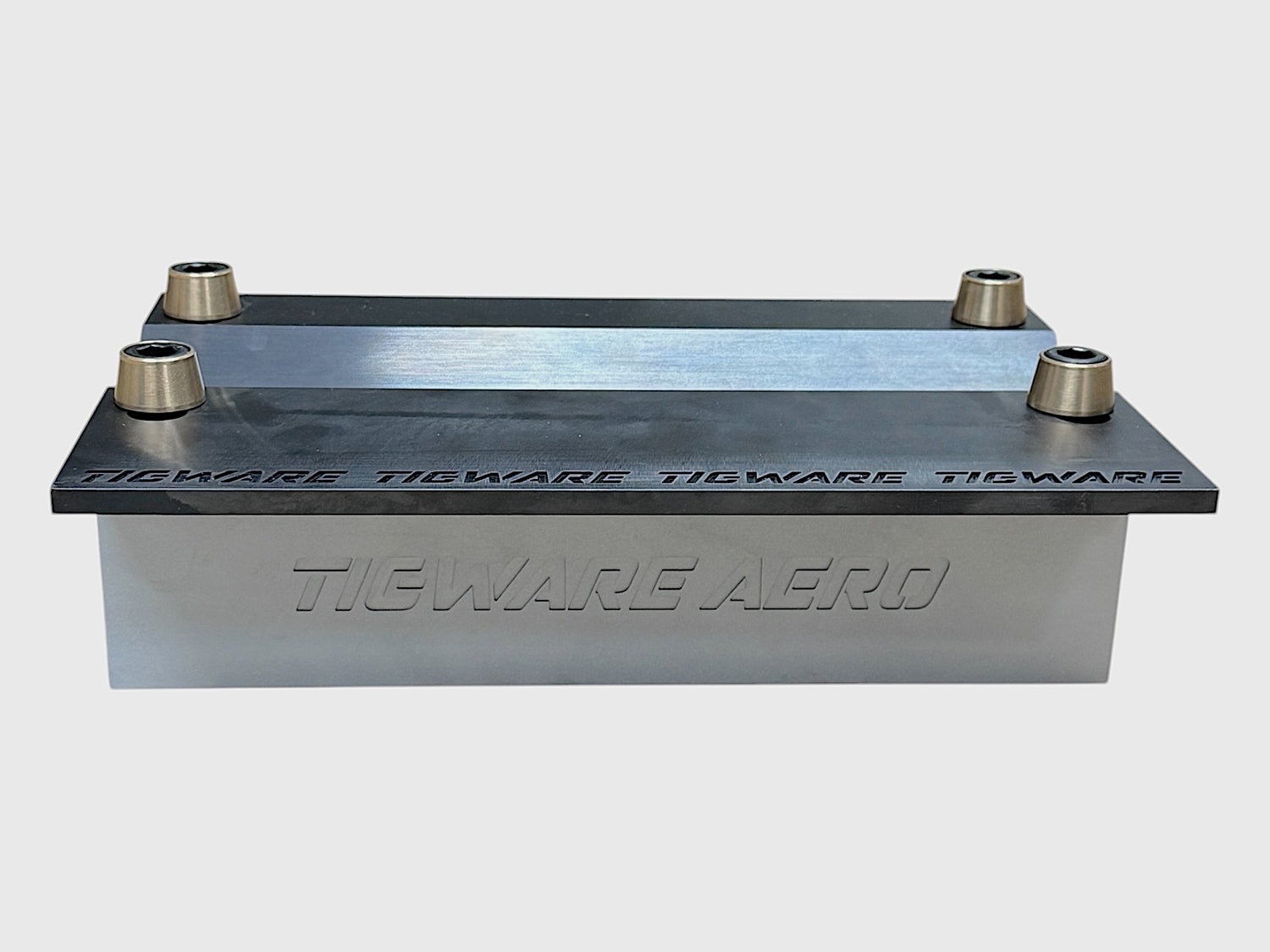

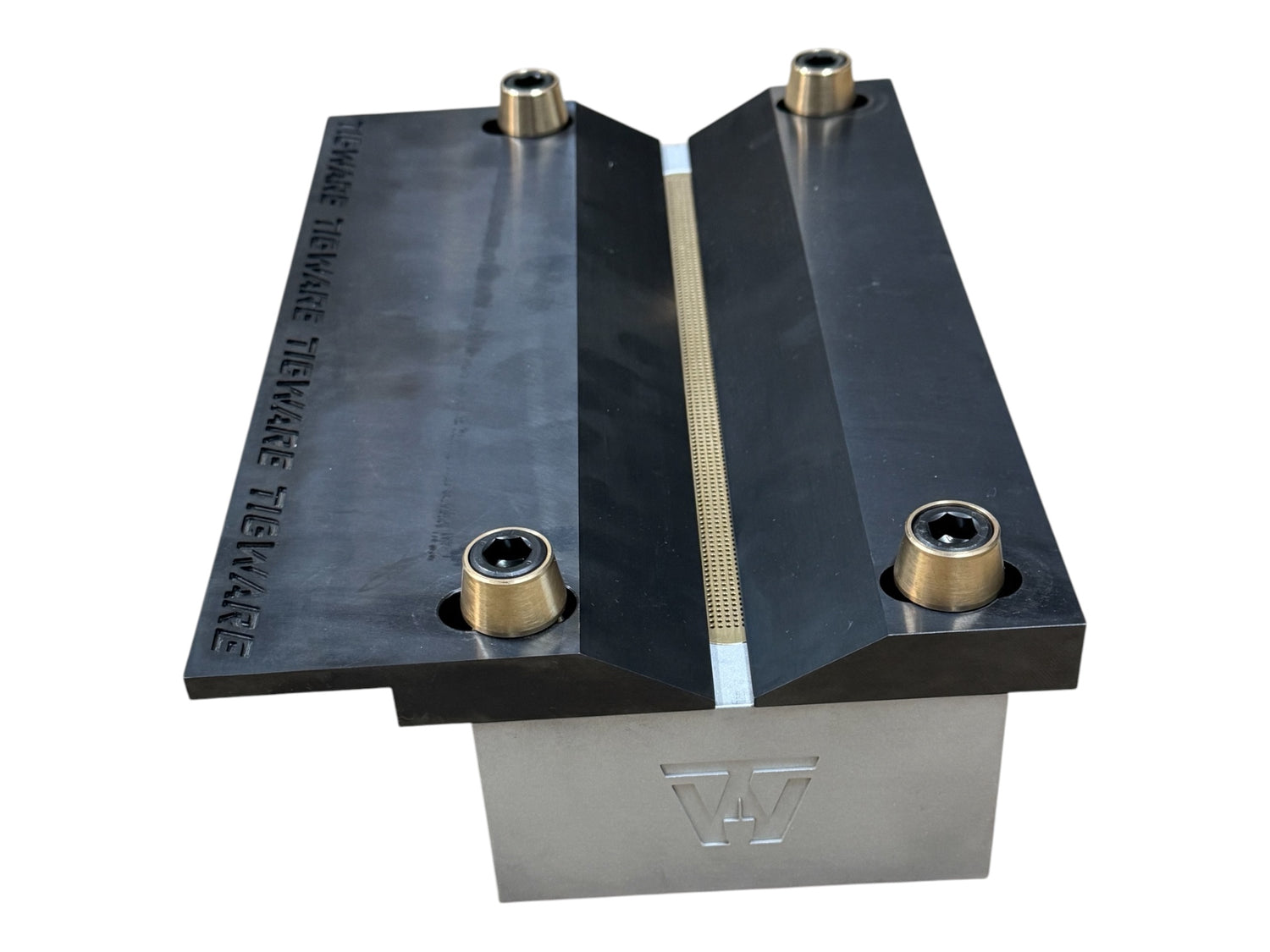

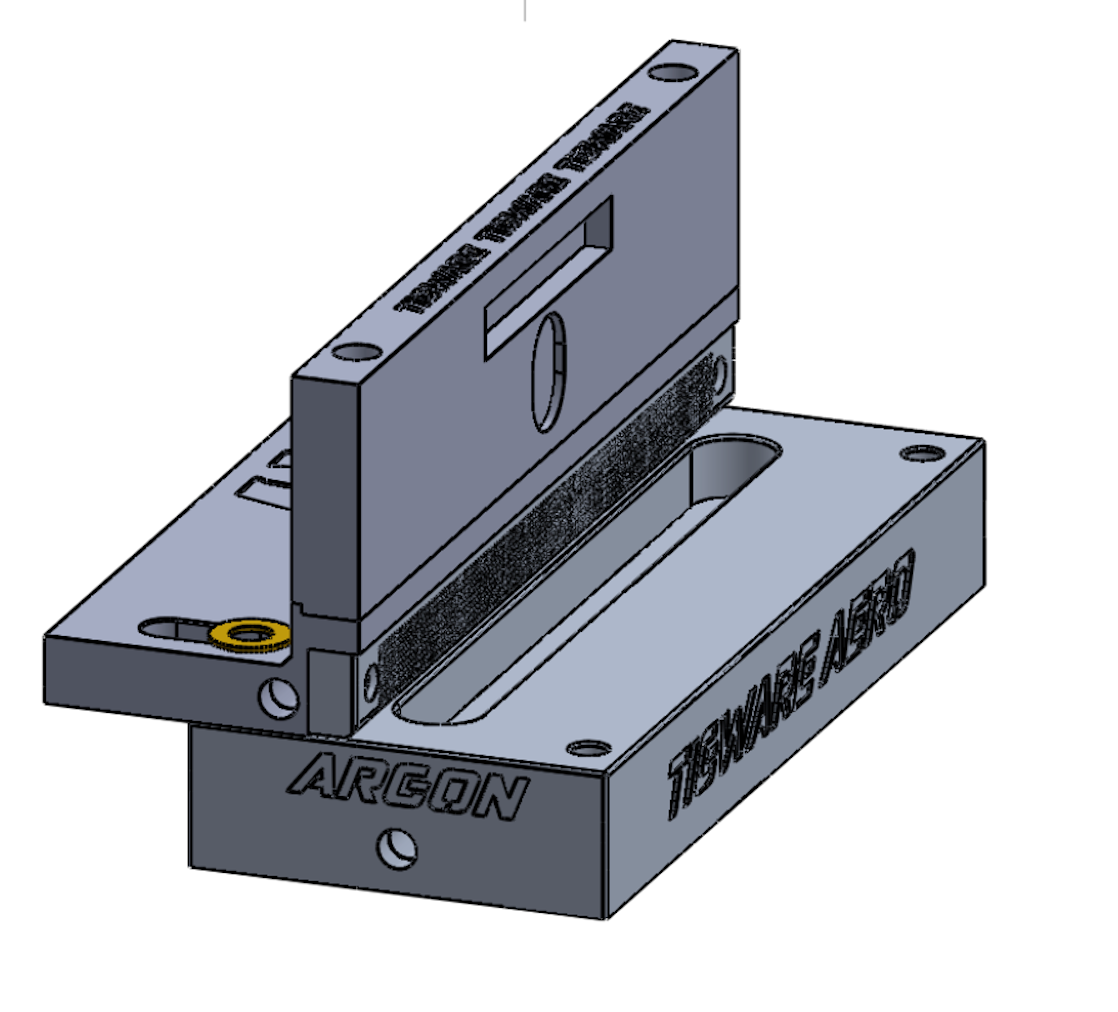

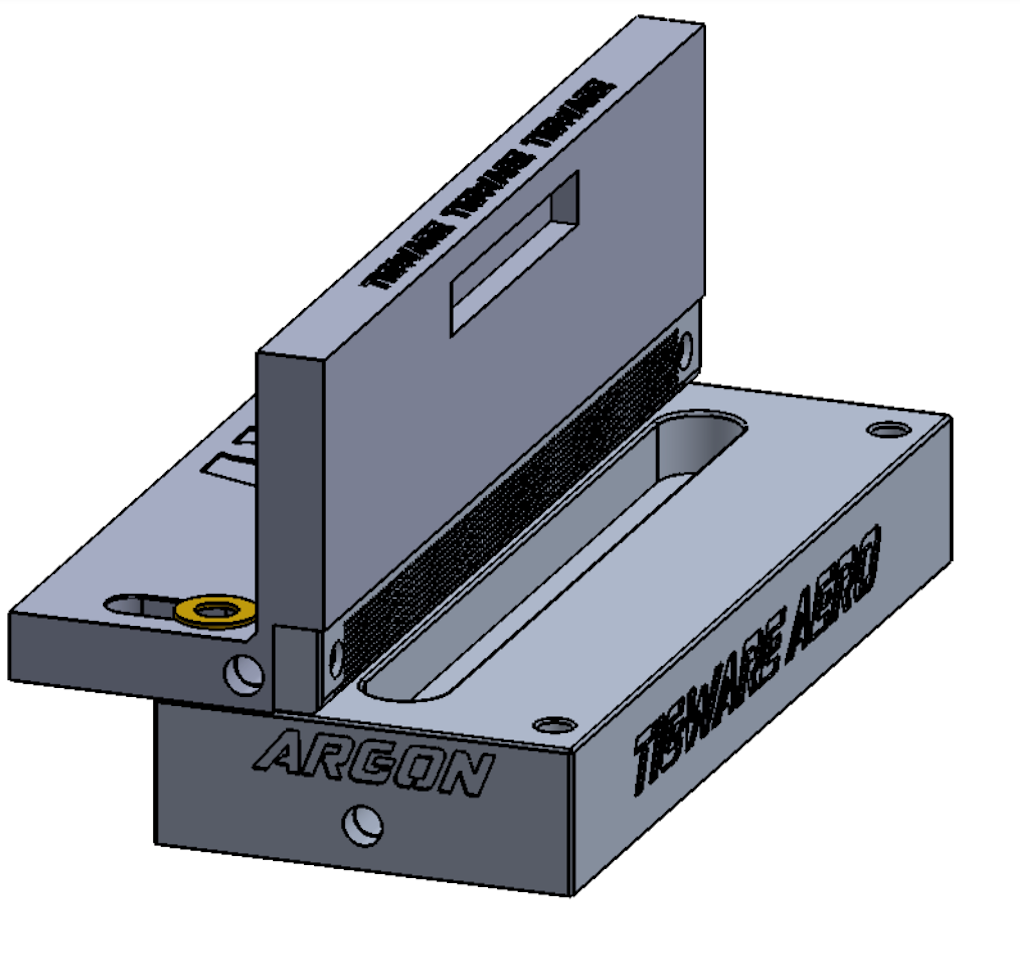

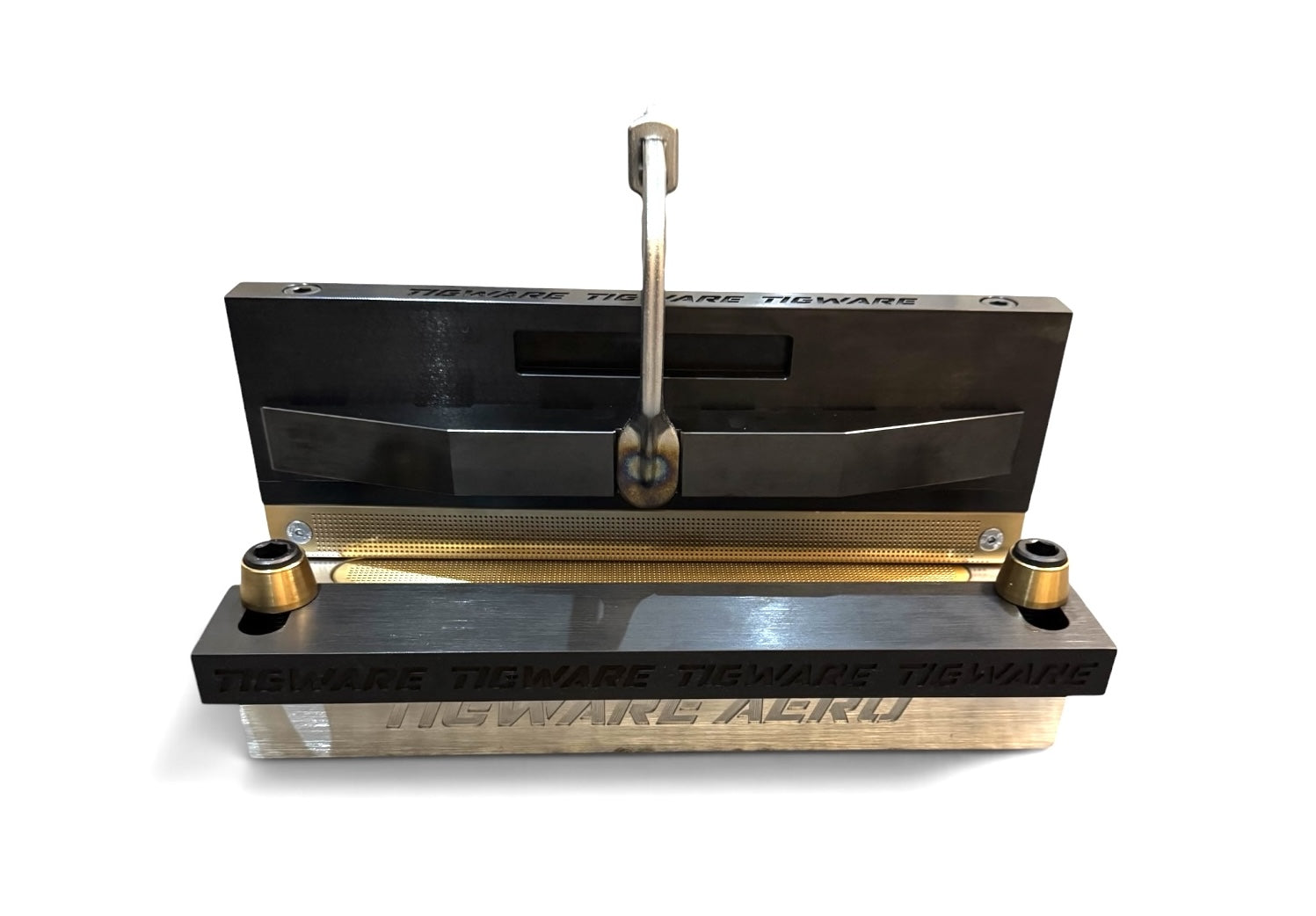

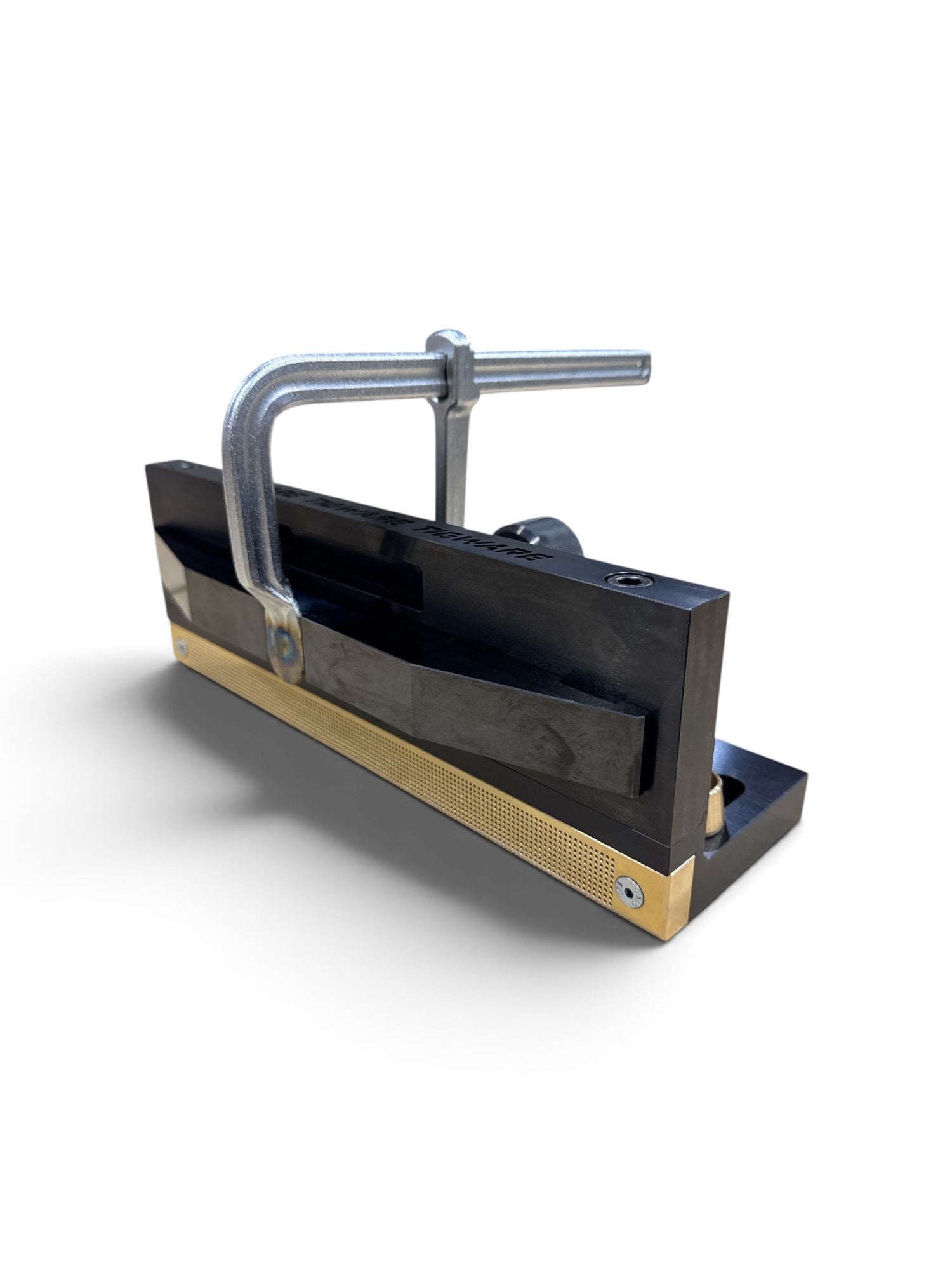

TIGWARE's Aerospace TIG Welding Test Fixture is designed for certification test welds

DETAIL: ISO 3690:2011 specifies the sampling and analytical procedure for the determination of diffusible hydrogen in martensitic, bainitic, and ferritic steel weld metal arising from the welding of such steels using welding processes with filler metal

Construction

Main Block 6061 Aluminium

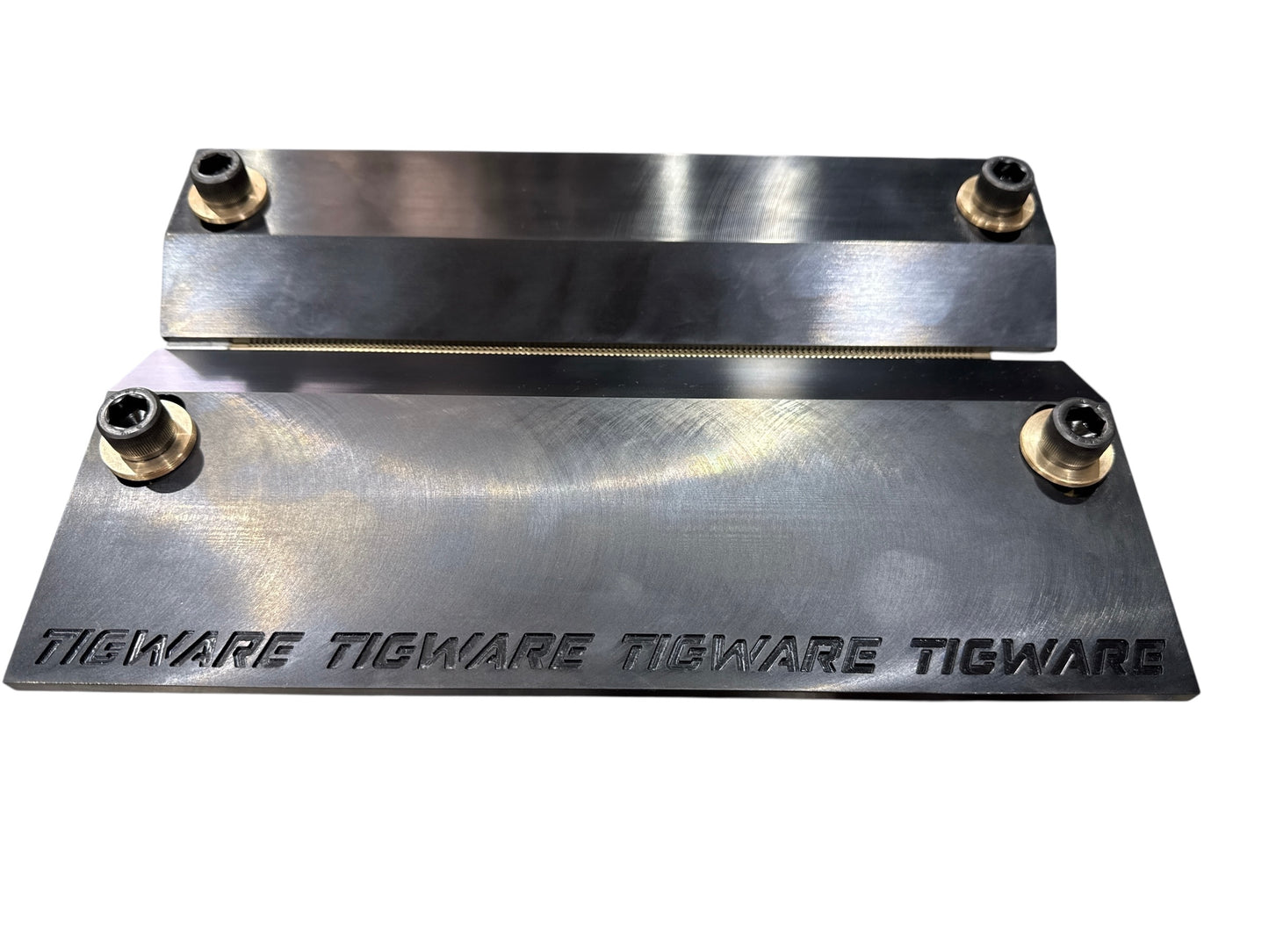

Clamping Plates Carbon Steel

Flange Bolts High Tension M12 Bolts

Test sample length for this product is 230mm / 9"

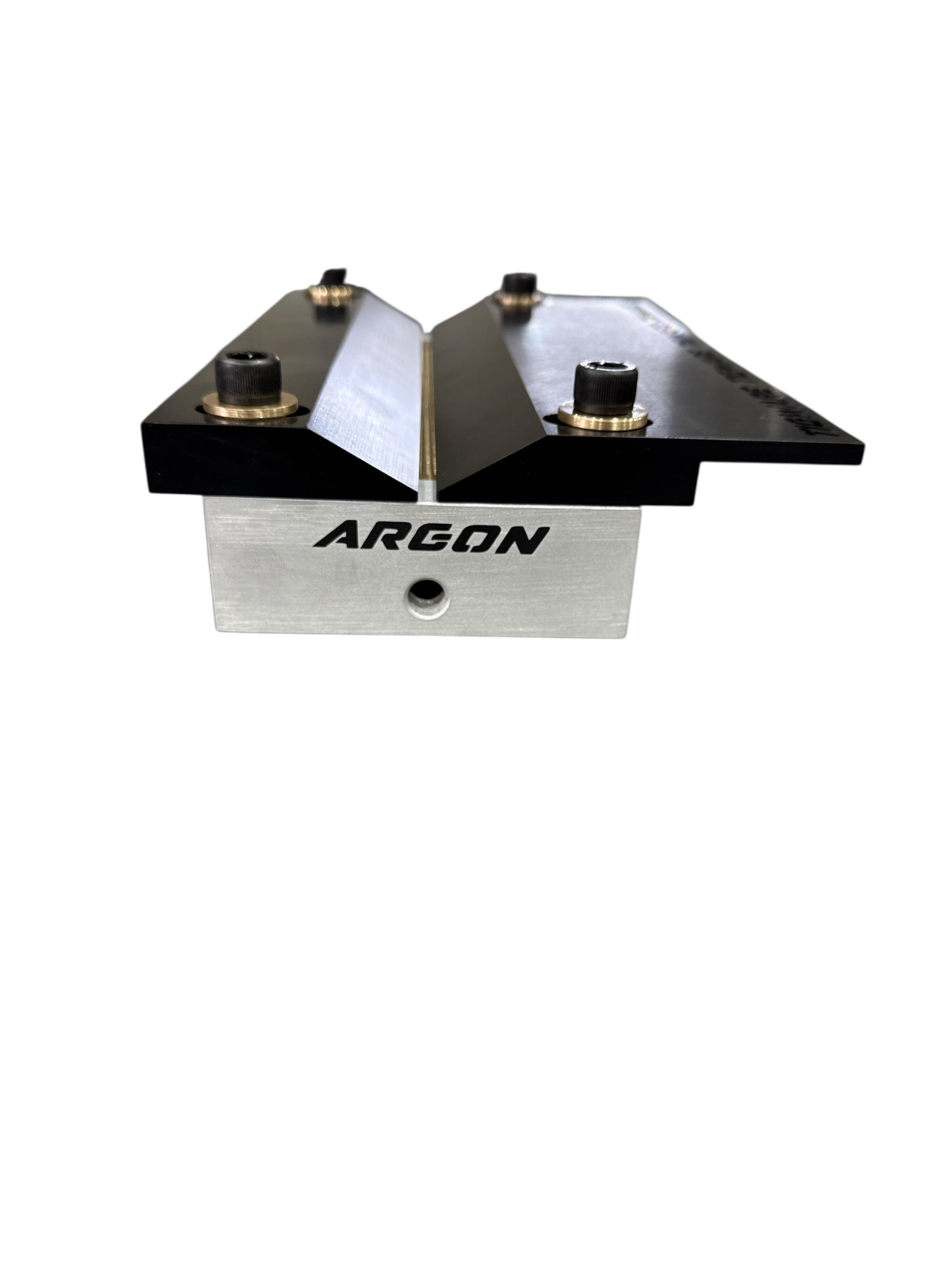

Gas Port 1/4" BSPT

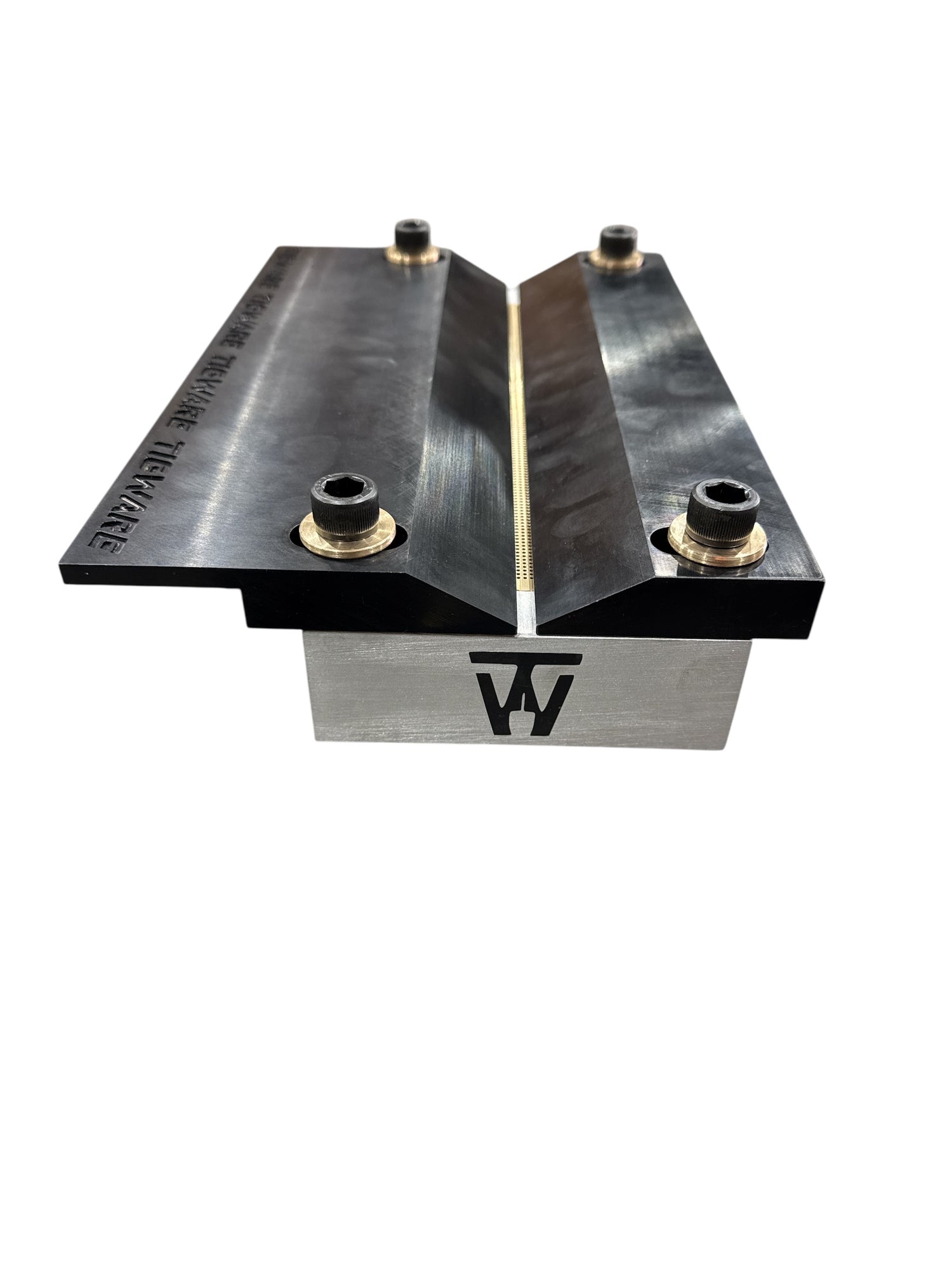

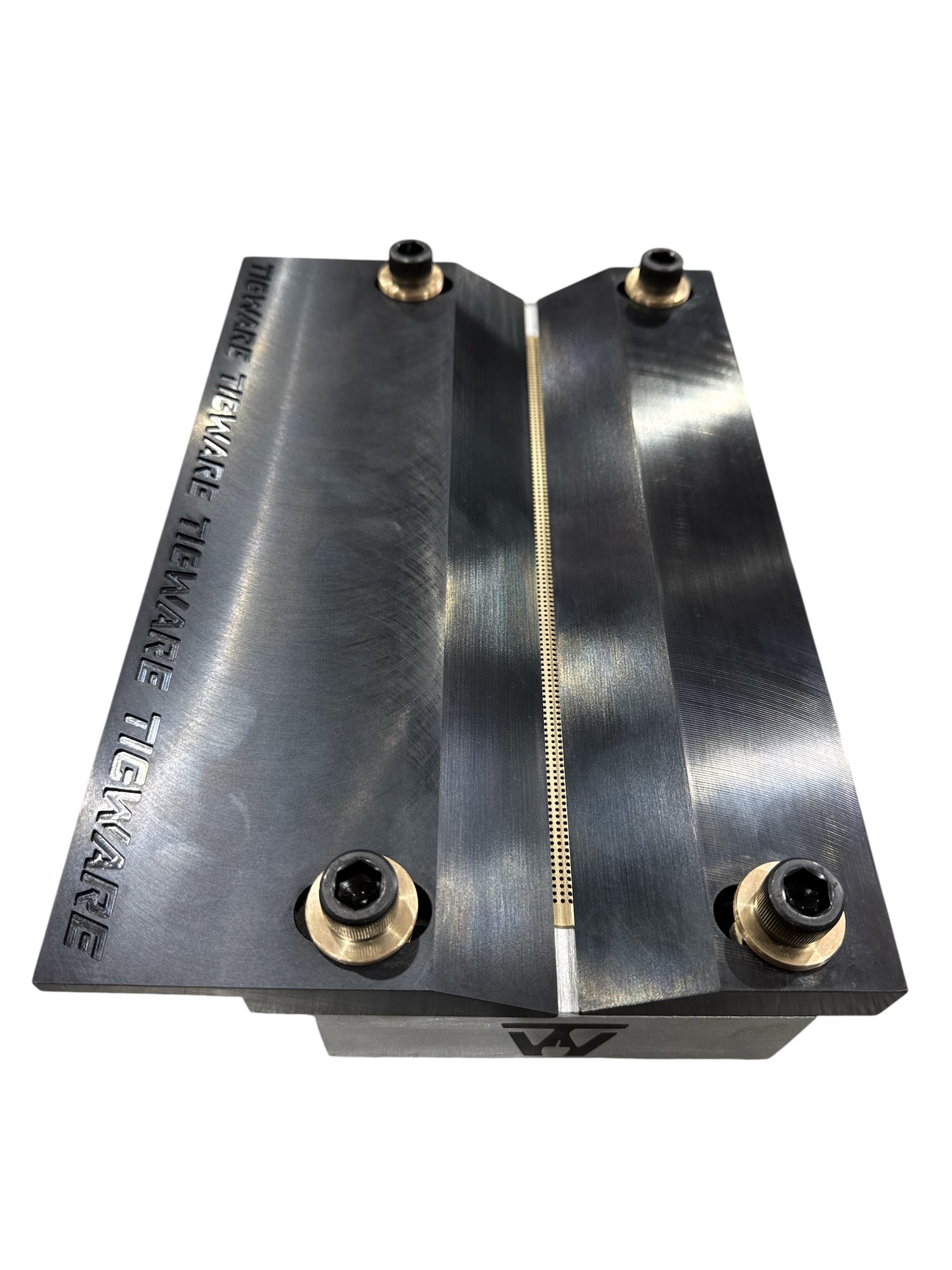

Work side Fixture Plate has an extended skirt for ergonomic weld runs

Base block and Fixture Plates provide massive Heatsink properties

AERO Options

AERO ARGON Cooled (Basic Model) Single Port
