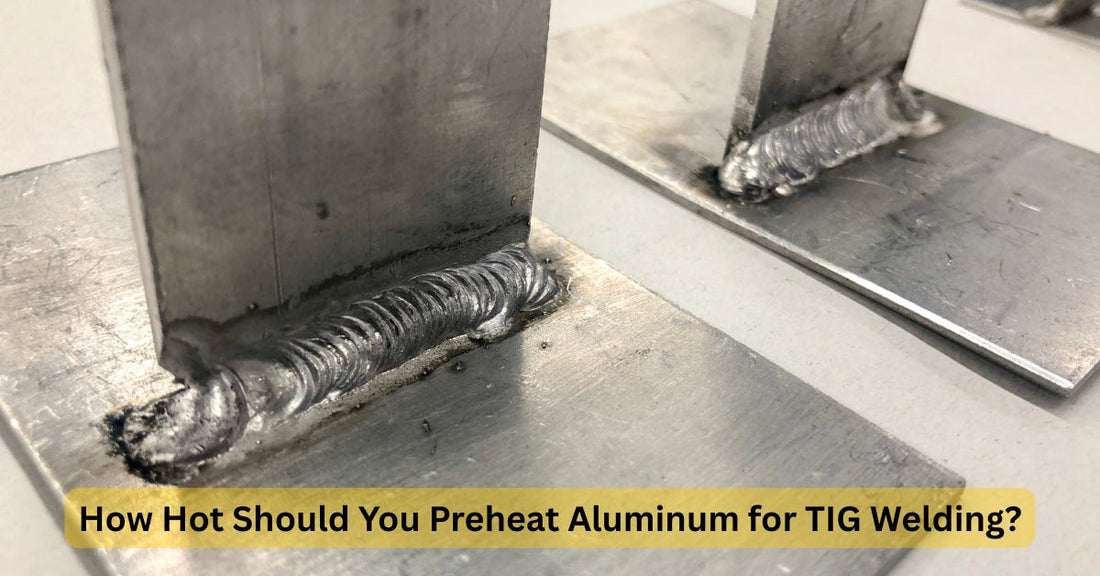

Preheating aluminum for TIG welding is crucial for ensuring high-quality welds, reducing defects, and improving penetration. The recommended preheat temperature for aluminum typically ranges between 100°F to 400°F (38°C to 204°C), depending on factors such as alloy composition, material thickness, and cleanliness.
While preheating is not always necessary, it plays a vital role in reducing cracking and improving weld fluidity, especially for thicker sections. In this guide, we’ll explore the best practices for preheating aluminum before TIG welding, methods to achieve optimal heat levels, and common mistakes to avoid.
Why Preheat Aluminum for TIG Welding?
In essence, preheating addresses the unique challenges aluminum presents, directly impacting critical aspects of the welding process:
Reducing Thermal Shock and Cracking
Aluminum has a high thermal conductivity, meaning it rapidly dissipates heat. This makes it susceptible to thermal shock, which can lead to cracking. Preheating helps by gradually raising the temperature, minimising stress buildup and reducing the likelihood of cracks forming.
Preheating is crucial for reducing cracking and improving weld fluidity, especially for thicker sections [1]
Improving Weld Pool Fluidity
Preheating enhances the flow of the molten aluminum, making it easier to fuse. This results in a more consistent and stronger weld. Additionally, it prevents cold starts, ensuring a smoother welding process with better bead formation.
Enhancing Fusion and Penetration
Aluminum oxide, which forms naturally on the metal’s surface, melts at a much higher temperature than the aluminum itself. Preheating reduces the need for excessive amperage to break through this oxide layer, improving fusion between the base material and filler metal.
Recommended Preheat Temperatures Based on Alloy & Thickness
The specific preheat temperature required varies significantly depending on the aluminum alloy and the thickness of the material. Here’s a breakdown of the recommended temperatures for different scenarios:
Thin Aluminum Sheets (Less than 1/8” or 3mm)
-
Minimal or no preheat required (~100°F or 38°C).
-
Proper cleaning and high-frequency start techniques compensate for low preheat.
Medium Thickness (1/8” to 1/4” or 3-6mm)
-
Moderate preheat of 150°F to 250°F (65°C to 121°C).
-
Reduces arc start difficulties and improves weld fusion.
Thick Aluminum Sections (Above 1/4” or 6mm)
-
High preheat of 300°F to 400°F (149°C to 204°C).
-
Ensures deep penetration and minimizes porosity.
The recommended preheat temperature for aluminum typically ranges between 100°F to 400°F (38°C to 204°C), depending on factors such as alloy composition, material thickness, and cleanliness. [2]
Methods to Preheat Aluminum for TIG Welding
Now, let's look at the practical side: how do you actually get that aluminum up to the right temperature? Here are some common and effective preheating methods:
Oxy-Fuel Torch Preheating
-
A controlled flame can be used to apply even heat across the aluminum surface.
-
Avoid overheating to prevent excessive oxidation.
Induction Heating
-
Provides precise and uniform preheating without direct contact.
-
Ideal for production welding and thicker aluminum sections.
Electric Resistance Heating
-
Uses resistive elements to slowly bring the material up to temperature.
-
Common in industrial applications.
Infrared Heat Lamps
-
A non-contact method that evenly distributes heat before welding.
-
Useful for maintaining preheat in multi-pass welding.
How to Measure Preheat Temperature Accurately
Make sure you follow this method to monitor and verify preheat levels:
Infrared Thermometers
Infrared thermometers provide a quick and non-contact way to measure surface temperature. They are effective for ensuring the metal has reached the desired preheat level.
Temperature-Indicating Crayons
These specialized crayons melt at specific temperatures, giving a visual indication of when the material has reached the correct preheat level.
Digital Surface Probes
Digital surface probes offer highly accurate temperature readings. They help prevent overheating and ensure the aluminum is within the optimal preheat range before welding.
Common Mistakes in Aluminum Preheating
Even with the best intentions, certain missteps can undermine the benefits of preheating. Here are the common errors to avoid to ensure successful aluminum welds:
Overheating and Oxidation Issues
Exceeding 400°F (204°C) can weaken aluminum’s mechanical properties. Excessive preheat can cause porosity and oxide formation, leading to weak welds that compromise the integrity of the finished product.
Uneven Preheating and Its Impact on Weld Quality
Uneven heating can lead to localised expansion, causing warping or distortion. To avoid this, always use consistent preheating techniques across the entire workpiece, ensuring uniform temperature distribution.
Relying Solely on Arc Heat Without Preheating
Without preheat, thick aluminum sections may require excessively high amperage, leading to inconsistent welds. Proper preheating stabilizes the welding process and improves penetration, reducing the likelihood of defects.
The Role of Gas Shielding and Cup Selection in Preheated Aluminum Welding
Here’s how proper gas cup selection and shielding contribute to successful welds on preheated aluminum:
Using High-Quality Gas Cups
Gas cups play a critical role in maintaining proper shielding gas coverage, preventing contamination, and ensuring cleaner welds.
TIGWARE Triple Diffuser System
TIGWARE’s triple diffuser system enhances gas flow, reducing turbulence and improving overall weld consistency, especially when working with preheated aluminum.
Welding Techniques for Preheated Aluminum
Here are the key adjustments and considerations to ensure optimal results:
Adjusting TIG Welder Settings for Preheated Aluminum
To optimize oxide removal and arc stability, use AC balance control and adjust the amperage based on the preheat level. This prevents excessive heat input and ensures high-quality welds.
Controlling Heat Input to Prevent Warping
Intermittent welding techniques help distribute heat evenly and prevent excessive buildup. Allowing cooling cycles between passes also reduces the risk of warping and distortion.
Best Tungsten Electrodes for Aluminum Welding
For TIG welding aluminum, pure tungsten (Green) and Lanthanated tungsten (Blue) are commonly used. Lanthanated electrodes provide superior arc stability and a longer lifespan.
When NOT to Preheat Aluminum
As always, like any good rule, there are exceptions. Here's when you might want to reconsider preheating your aluminum:
Heat-Treated Alloys at Risk
Some aluminum alloys, such as 6061-T6, may lose their mechanical properties if exposed to excessive heat. Avoid preheating these alloys unless absolutely necessary.
Thin Sections and Burn-Through Risks
Preheating is generally unnecessary for thin sections, as excessive heat can lead to burn-through, reducing weld quality.
Pulsed TIG Welding as an Alternative
For applications where preheating is impractical, pulsed TIG welding can be used to control heat input while achieving strong weld penetration.
Frequently Asked Questions
1. What happens if you overheat aluminum before welding?
Overheating can degrade aluminum’s mechanical properties, cause excessive oxidation, and lead to weak, porous welds.
2. Can preheating aluminum affect its mechanical properties?
Yes, prolonged high-temperature exposure can reduce strength, especially in heat-treated alloys like 6061-T6.
3. What is the best way to remove oxides before preheating?
Use a stainless steel brush or chemical cleaners like acetone to remove aluminum oxide before preheating.
4. How does preheating compare to using a higher amperage setting?
Preheating reduces the need for excessive amperage, resulting in better penetration and lower risk of distortion.
5. Are there specific TIG cups designed for preheated aluminum welding?
Yes, TIGWARE gas lens cups improve shielding gas efficiency, ensuring cleaner welds in preheated aluminum.
Final Insight On Aluminum TIG Welding with the Right Preheat
Preheating aluminum for TIG welding is an essential technique for ensuring smooth, high-quality welds, particularly for thick sections.
By following the recommended temperature guidelines, using the right heating methods, and avoiding common mistakes, you can achieve better fusion and reduce the risk of defects. Additionally, using high-quality TIGWARE gas cups and proper shielding techniques further enhances weld performance.
Ready to experience that difference? Explore TIGWARE’s premium welding accessories today.
Sources :
[1] Zhang Y, Li H, Liu J, et al. Effects of preheating treatment on temperature distribution and mechanical properties of aluminum-steel TIG welded joints. J Manuf Process. 2017;28:222-229. https://www.sciencedirect.com/science/article/abs/pii/S152661251730169
[2] Singh R, Kumar R. Optimizing of TIG welding parameters of Aluminium alloy (AL6061-T6). Int J Eng Res Appl. 2017;7(1):19-23.
https://www.erpublications.com/uploaded_files/download/download_07_01_2017_19_09_01.pdf
